MACHINES BASES SUR L' ATARI 68000


LISTE DE JEUX BASES SUR LE HARDWARE ATARI 68000

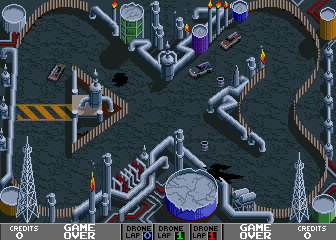

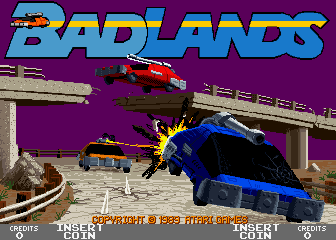

Badlands 1989
CPU : 68000 @ 7.159 MHz Son : Stand-Alone Audio (6502 @ 1.790 MHz, driving YM-2151) Résolution : 336 x 240

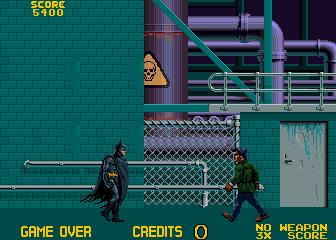

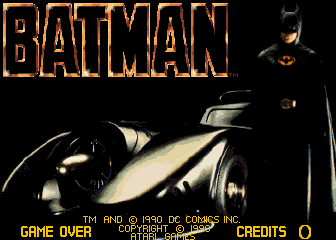

Batman 1990
PCB : A048987-01 BATMAN CPU : 68000 (MC68HC000P12F 16MHz [DIP]) ROM : 136085 Oscillateurs : 14.31818 Fujitsu : MB7316, 9003 Z14, 137536-001 [40pin DIP, 11B/11C] VLSI : 8937AV W0473, VGT8001-6206, 137593-001 [84pin PLCC, 10F] VLSI : 9037AV 146757, VGT8001-6364, 137656-002 [84pin PLCC, 6F] VLSI : 9020AV Y40625, VGT7906-6311, 137657-001 [40pin DIP, 12K]

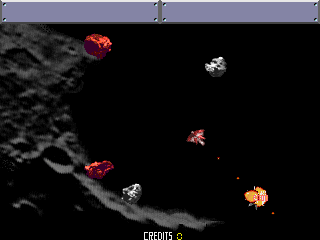

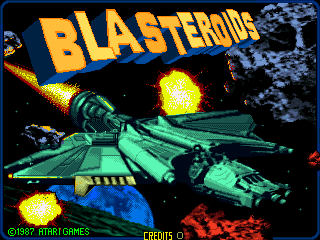

Blasteroids 1987
PCB : A044326 BLASTEROIDS CPU : 68000 (MC68000P8) ROM : 136057 Oscillators : 14.31818 VLSI : 732V E2411, VGC7205-0672, 137304-2002 [24pin DIP, 8A] Motorola : SOS, 8751 XYACZK, 137550-001 [40pin DIP, 4E/10L] Motorola : VMA, 8804A YCADZK, 137552-001 [40pin DIP, 8L]

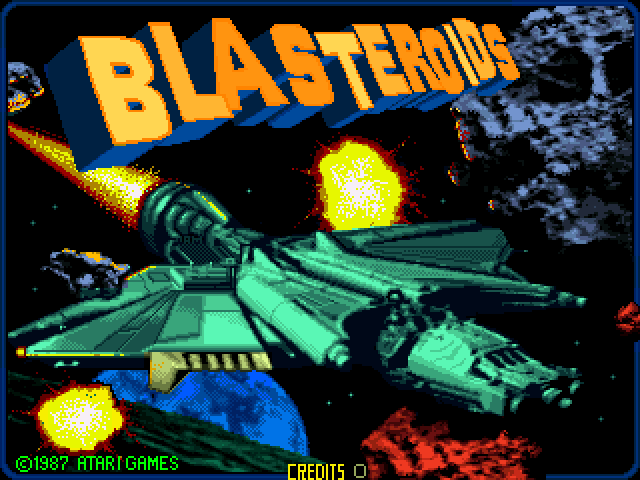

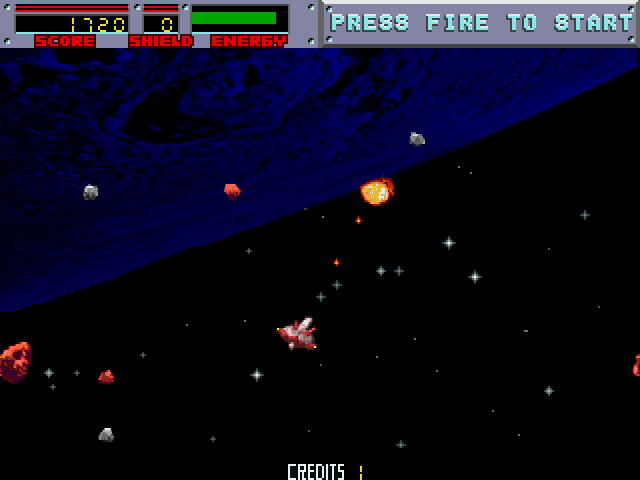

Blasteroids (With Heads) Prototype - 1987

Food Fight General Computer Corp - 1982

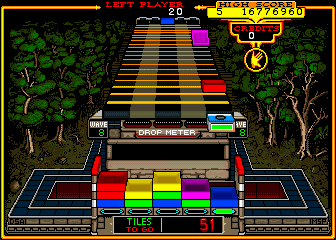

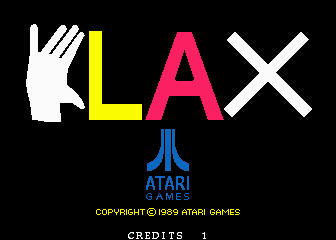

Klax 1989
PCB : A047441 KLAX SOS CPU : 68000 (MC68000P8) Son : Main CPU driving an OKI 6295 ADPCM ROM : 136075 Oscillateurs : 14.31818MHz Fujitsu : MB37316, 8950 Z12, 137536-001 [40pin DIP, 17P] Motorola : SOS, ZKZKAC8947, 137550-001 [40pin DIP, 17R/17T/9Y] VLSI : 9003AV 101427, VGT8001-6206, 137593-001 [84pin PLCC, 12S]

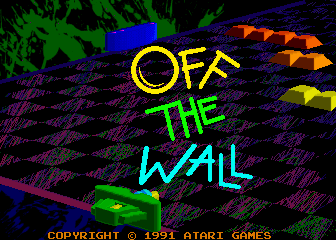

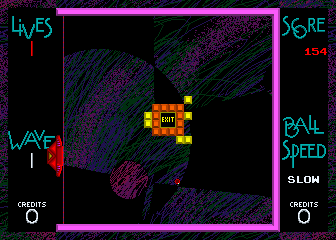

Off The Wall 1991
PCB : A049727 ROUND CPU : 68000 (MC68HC000P12F 16MHz [DIP]) ROM : 136090 Oscillateurs : 14.31818MHz VLSI : 9110AV 170041, VGC7205A0672, 137304-2002 [24pin DIP, 16A] Fujitsu : MB87316, 8947 Z11, 137536-001 [40pin DIP, 1O] VLSI : 8937AV W0474, VGT8001-6206, 137593-001 [84pin PLCC, 8M] VLSI : 9025AV 132791, VGT8001-6364, 137656-002 [84pin PLCC, 8F] VLSI : 9037AV 101408, VGT7906-6311, 137657-001 [40pin DIP, 11N]

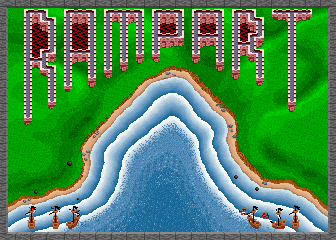

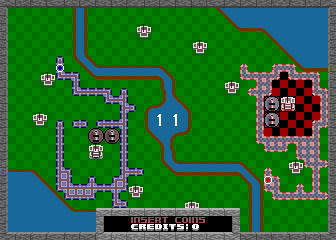

Rampart 1990
Slapstic : 137412-118 PCB : A048869 RAMPART CPU : 68000 (MC68000P8) Son : Main CPU driving a YM-2413 + OKI 6295 ADPCM Résolution : 336 x 240 ROM : 136082 Oscillateurs : 14.31818 VLSI : 9009AV Y08621, VGC7205A0672, 137304-2002 [24pin DIP, 12A] VLSI : 9009AV Y08621, VGC7205A0672, 137304-2002 [24pin DIP, 13A] Fujitsu : MB87316, 8950 Z12, 137536-001 [40pin DIP, 1F] Motorola : SOS, ZKZKAE8949, 137550-001 [40pin DIP, 11L] VLSI : 9003AV 104A17, VGT8001-6206, 137593-001 [84pin PLCC, 2K]

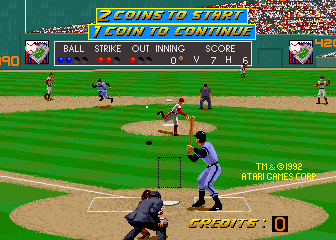

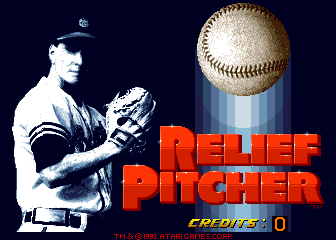

Relief Pitcher 1992
PCB : A049727 ROUND CPU : 68000 (MC68000P8 [DIP]) ROM : 136093 Oscillateurs : 14.31818MHz Fujitsu : MB87316, 8947 Z10, 137536-001 [40pin DIP, 1O] VLSI : 9209AV 210483, VGT8001-6206, 137593-001 [84pin PLCC, 8M] VLSI : 9033AV 136891, VGT8001-6364, 137656-002 [84pin PLCC, 8F] VLSI : 9021AV Y70422, VGT7906-6311, 137657-001 [40pin DIP, 11N]

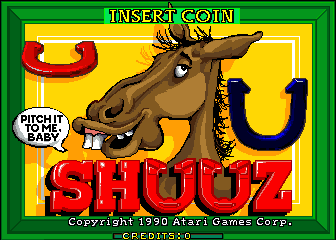

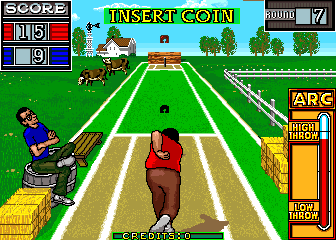

Shuuz 1990
PCB : A047365 SHUUZ CPU : 68000 (MC68000P8 [DIP]) Son : Main CPU driving an OKI 6295 ADPCM Résolution : 336 x 240 ROM : 136083 Oscillateurs : 14.31818MHz VLSI : 721V E2411, VGC7205-0672, 137304-2002 [24pin DIP, 50F] Fujitsu : MB87316, 8950 Z12, 137536-001 [40pin DIP, 85S] VLSI : 9003AV 101426, VGT8001-6206, 137593-001 [84pin PLCC, 70S] VLSI : 9013AV 118791, VGT8001-6309, 137656-001 [84pin PLCC, 50S] VLSI : 9019AV Y70517, VGT7906-6311, 137657-001 [40pin DIP, 100R]

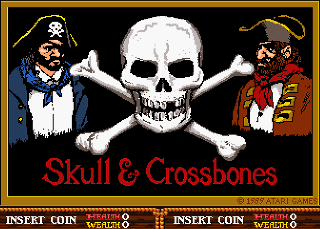

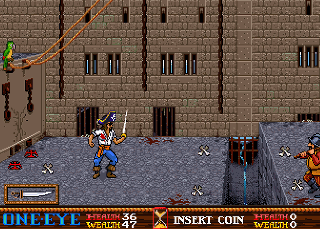

Skull And Crossbones 1989
PCB : A046902 SKULL AND CROSSBONES CPU : 68000 (MC68000P8) ROM : 136072 Oscillateurs : 14.31818 MHz VLSI : 819 V M4476, 137526-001 [28pin DIP, 120E] Motorola : SOS, 137550-001 [40pin DIP, 30L/30N/200N/100H] VLSI : 8912AV U0975, VGT8001-6206, 137593-001 [84pin PLCC, 140K] Unknown Chips : 8932, 137419-104 [40pin DIP, 200L]

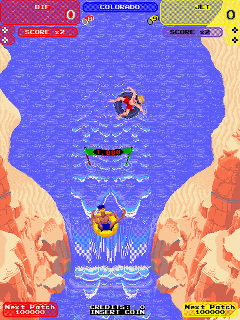

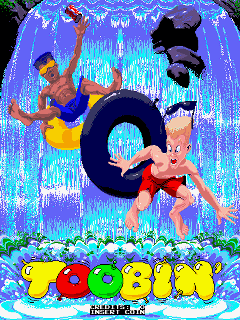

Toobin' 1988
PCB : A044058 TOOBIN CPU : 68010 (MC68010P8) Son : Stand-Alone Audio (6502 @ 1.790 MHz, driving YM-2151 + POKEY) Resolution : 512 x 384 ROM : 136061 Oscillateurs : 32.000 Motorola : SOS, 137550-001 [40pin DIP, 7B/8B]

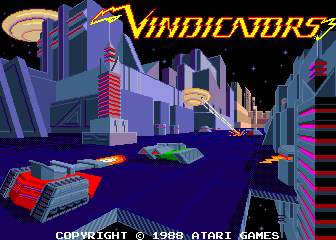

Vindicators 1988
PCB : A044402 ROMALOT CPU : 68010? (MC68010P8) ROM : 136059 Oscillateurs : 14.31818 Fujitsu : MB87316, 8743 Z04, 137536-001 [40pin DIP, 15D]

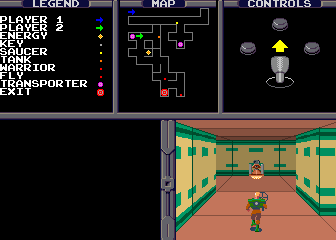

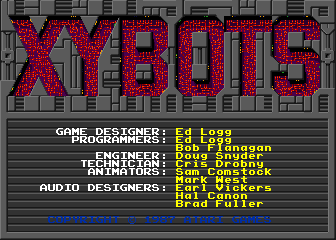

Xybots 1987
Protection Chip : Slapstic 137412-107 F.A.Q. PCB : A044423 XYBOTS CPU : 68000 (SCN68000C8N64 [DIP]) ROM : 136054 Oscillateurs : 14.31818 VLSI : 730 V H792B, 137526-001 [20pin DIP, 20E] Fujitsu : MB87316, 8473 Z05, 137536-001 [40pin DIP, 8J/9J]
